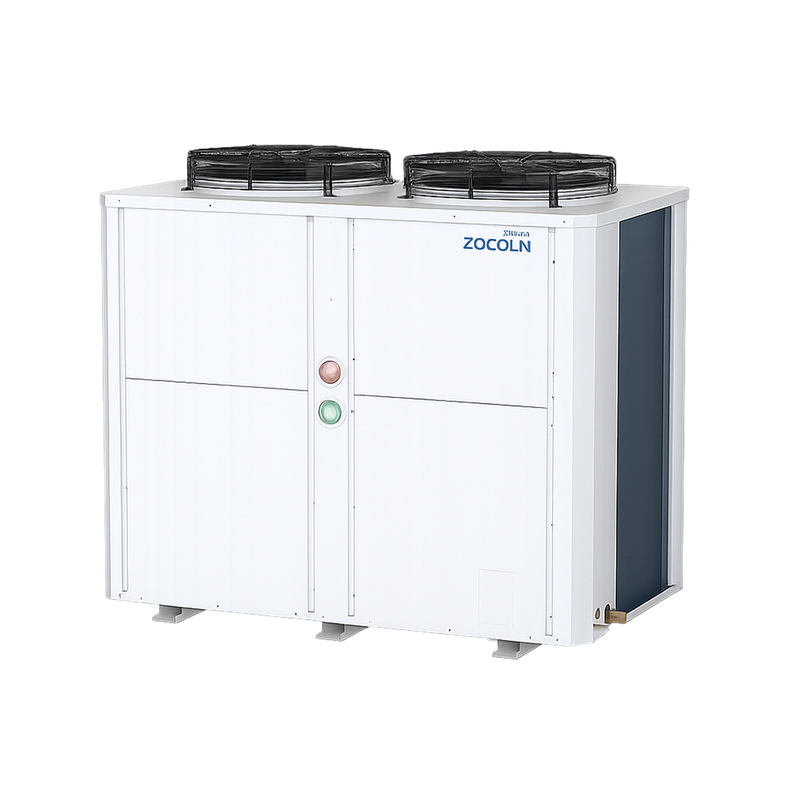

Copeland Refrigeration Fixed Frequency 15–20HP Top Blowing Integrated Box-Type Unit

Engineered for ultra-large commercial and industrial applications, this Copeland-based top-blowing condensing unit offers exceptional cooling performance, reliability, and heat exchange capacity. Designed for systems up to 20 meters, it's ideal for food processing plants, cold storage hubs, and industrial refrigeration lines.

Applicable Cabinet Size:
Refrigerated cabinet 15–20 meters long, 0.8 m wide, 2 m high.

Key Features:

• Available Models and Nominal Power:

  • 15HP: CAM32P01-150

  • 20HP: CAM32P01-200

• Power Supply: 3PH, 380V / 50Hz

• Refrigerant: R404A

• Evaporation Temp Range: -30°C to +10°C

• Ambient Temp Range: -15°C to +48°C

• Cooling Method: Electronic expansion valve + auxiliary liquid injection cooling

• Crankcase Heater: 44W, PTC

• Compressor Model:

  • 15HP: ZB114KQE

  • 20HP: ZB150KQE

• Refrigeration Oil: POE RL32-3MAF

  • Oil Capacity:

    • 15HP: 3.3 L

    • 20HP: 4.67 L

• Fan System:

  • 2 × 550mm top-mounted axial fans

  • Fan Power: 2 × 600W

  • Heat Exchange Area:

    • 15HP: 119㎡

    • 20HP: 147㎡

• Condenser:

  • Copper tube (9.52 × 0.32 mm) + Hydrophilic aluminum foil

  • L-type layout

• Piping Connection:

  • Liquid pipe: 5/8"

  • Suction pipe: 1-1/8"

• Electrical System:

  • Schneider LC1D series contactor

  • CHINT circuit breakers

  • RS485 communication

  • Fault code display

  • Phase loss & reversal protection

  • Exhaust temperature protection

  • Fan speed control

• Standard Components:

  • Filter drier, sight glass, liquid receiver: ✔️

  • Oil separator, gas-liquid separator: Optional

  • High/Low pressure gauge and switch: ✔️

  • High pressure protection: Saginomiya, auto-reset, 30 bar

• Unit Weight:

  • 15HP: 260 kg

  • 20HP: 275 kg

• Operating Noise:

  • 15HP: 66 dB

  • 20HP: 68 dB

• Dimensions (L×W×H): 1560 × 900 × 1380 mm

• Recommended Wiring: 10 mm²
