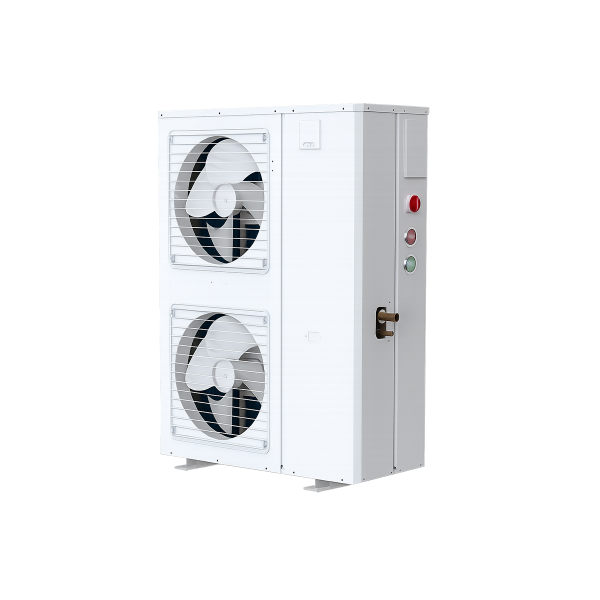

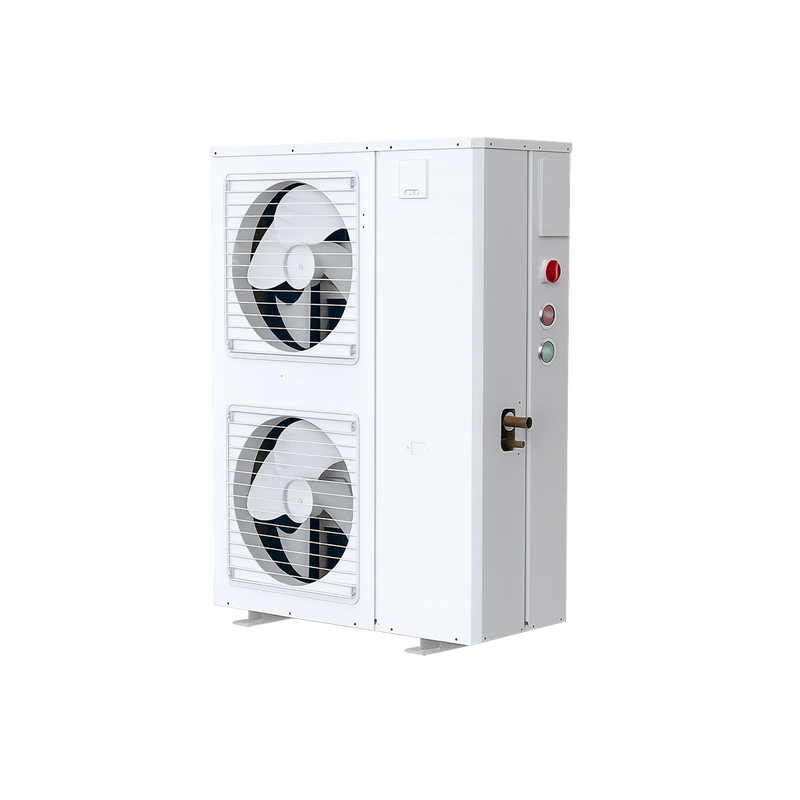

Panasonic DC Inverter Box-Type Integrated Unit - High Performance & Wide Temp Range

This advanced Panasonic DC inverter condensing unit range includes high-performance and low-temperature variants tailored for demanding cold storage environments. With inverter scroll compressors, enhanced heat exchange systems, and optimized airflow configurations, these models ensure maximum reliability and precision cooling—even in extreme low-temperature conditions.

Key Features:

• Power Supply:

  • CAM33P01H-60CV: 3Ph, 380V/50Hz

  • CAL33P01-84CV: 3Ph, 380V/50Hz

• Refrigerant:
  R404A

• Evaporating Temperature Range:

  • CAM33P01H-60CV: -30°C to +10°C

  • CAL33P01-84CV: -40°C to -5°C

• Ambient Temperature Range:
  -15°C to +48°C

• Compressor Configuration:

  • Panasonic scroll inverter compressors

  • CAM33P01H-60CV: C3B084ZAZ0M ×2 (twin)

  • CAL33P01-84CV: C3B084SA02 (jet enthalpy increase type)

  • Cooling method: Electronic expansion valve + liquid cooling (CAM); Jet enthalpy increase (CAL)

  • Crankcase heater: 35W PTC (CAM only)

• Condensing Unit Setup:

  • Air-cooled with dual axial fans

    • CAM: 2 × 500mm, 180W each

    • CAL: 2 × 500mm, 180W each

  • Heat exchange surface area:

    • CAM: 68㎡

    • CAL: 82㎡

  • Hydrophilic aluminum fins with 9.52/7.0/3.2 mm copper pipes

  • Coil shape: V-shaped (both models)

• Integrated System Components:

  • Gas-liquid separator

  • Sight glass

  • Liquid receiver: 10L (CAM), 16L (CAL)

  • Filter drier

  • Solenoid valve

  • HP/LP pressure switch

  • Optional oil pressure switch

  • High and low pressure gauges

• Control Board & Safety Features:

  • Advanced BLDC driver module

  • Supports: fault protection (temperature, pressure, power loss, phase loss), anti-freeze protection, spray control

  • Intelligent display panel with system diagnostics

• Globe Valve Sizes:

  • CAM: 1/2", 5/8", 5/8", 1-1/8"

  • CAL: 1/2", 5/8", 5/8", 1-1/8"

• Outer Dimensions (L×W×H):

  • CAM: 1250 × 560 × 1480 mm

  • CAL: 1250 × 560 × 1480 mm

• Unit Net Weight:

  • CAM: 168 kg

  • CAL: 170 kg

• Noise Level:

  • CAM: 56 dB

  • CAL: 59 dB

• Recommended Wiring Capacity:

  • 6 mm² (both models)
