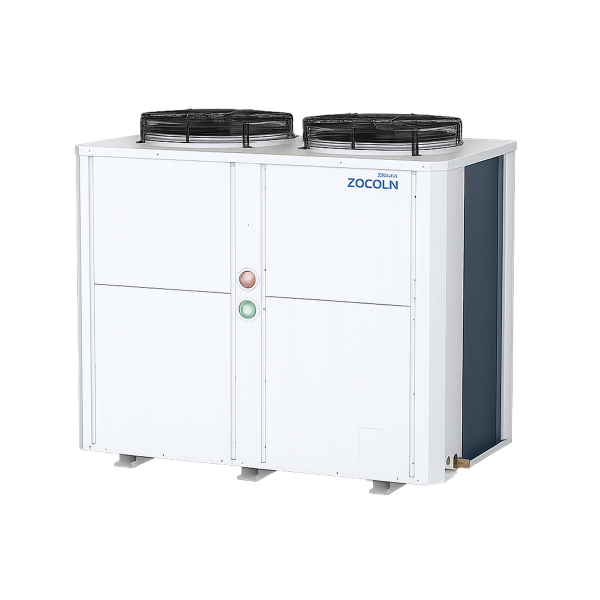

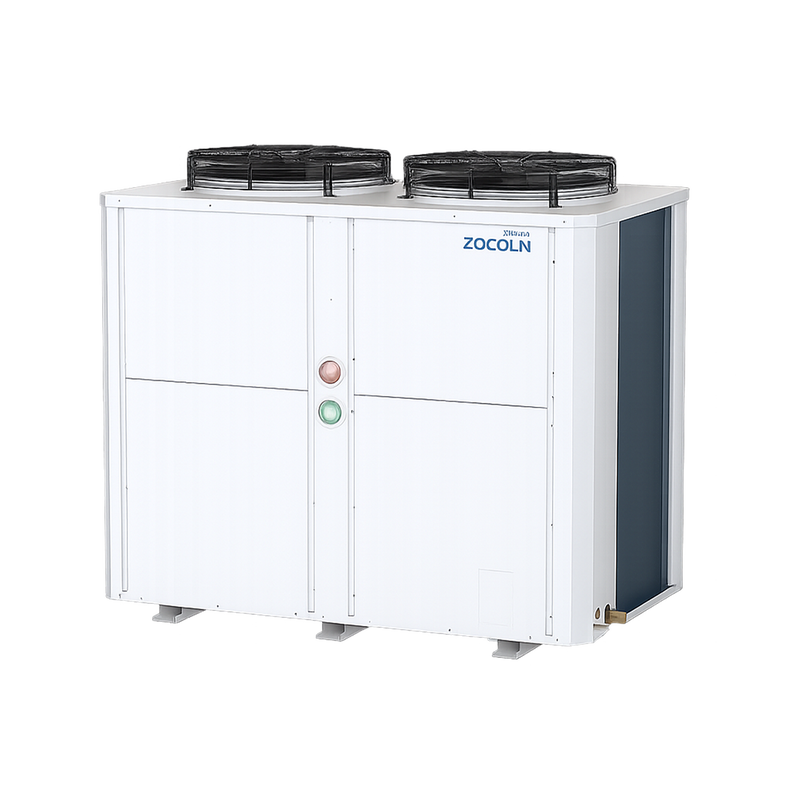

Panasonic Refrigeration Fixed Frequency 15–20HP Top Blowing Integrated Box-Type Unit

This ultra-high capacity top-blowing condensing unit is designed for industrial-scale refrigeration systems that demand maximum performance. With two large axial fans, powerful scroll compressors, and an expansive heat exchange area, it's ideal for food processing plants, massive cold storage facilities, and large-scale logistics hubs.

Applicable Cabinet Size:
Refrigeration system for 15–20 meters length, 0.8 m wide, 2 m high.

Key Features:

• Available Models and Nominal Power:

  • 15HP: CAM39P01-150

  • 20HP: CAM39P01-200

• Power Supply: 3PH, 380V / 50Hz

• Refrigerant: R404A

• Evaporation Temp Range: -30°C to +10°C

• Ambient Temp Range: -15°C to +48°C

• Cooling Method: Electronic expansion valve + auxiliary liquid injection cooling

• Crankcase Heater: 44W, PTC

• Compressor Model:

  • 15HP: 3CC260LA0M

  • 20HP: 3CF277SA0M

• Refrigeration Oil: FV68S or ester oil

  • Oil Capacity:

    • 15HP: 3.5 L

    • 20HP: 5.0 L

• Fan System:

  • 2 × 550mm top-mounted axial fans

  • Fan Power: 2 × 600W

  • Heat Exchange Area:

    • 15HP: 119㎡

    • 20HP: 147㎡

• Condenser:

  • Copper tube (9.52 × 0.32 mm) + Hydrophilic aluminum foil

  • L-type layout

• Piping Connection:

  • Liquid pipe: 5/8"

  • Suction pipe: 1-1/8"

• Electrical System:

  • Schneider LC1D series contactor

  • CHINT circuit breakers

  • RS485 communication

  • Fault code display

  • Phase loss & reversal protection

  • Exhaust temperature protection

  • Fan speed control

• Standard Components:

  • Filter drier, sight glass, liquid receiver: ✔️

  • Oil separator, gas-liquid separator: optional

  • High/Low pressure gauge and switch: ✔️

  • High pressure protection: Saginomiya, auto-reset, 30 bar

• Unit Weight:

  • 15HP: 266 kg

  • 20HP: 275 kg

• Operating Noise: 66 dB @1m

• Dimensions (L×W×H): 1560 × 900 × 1350 mm

• Recommended Wiring: 10 mm²
