Semi-Hermetic Piston Compressor Unit (U-Type Top Discharge, 5–7HP)

Post a comment
5.00
In stock
+
  • View all variations as list
Description

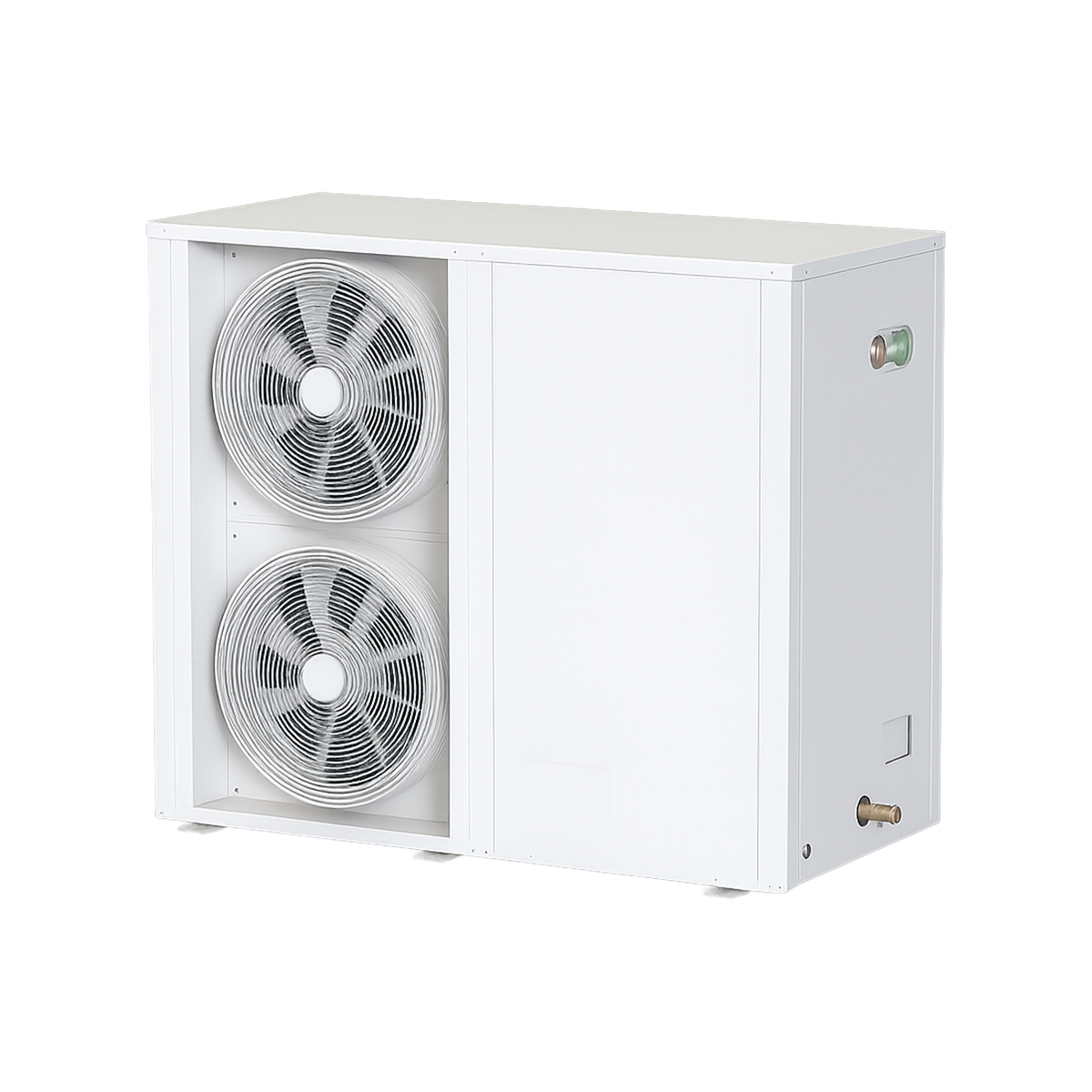

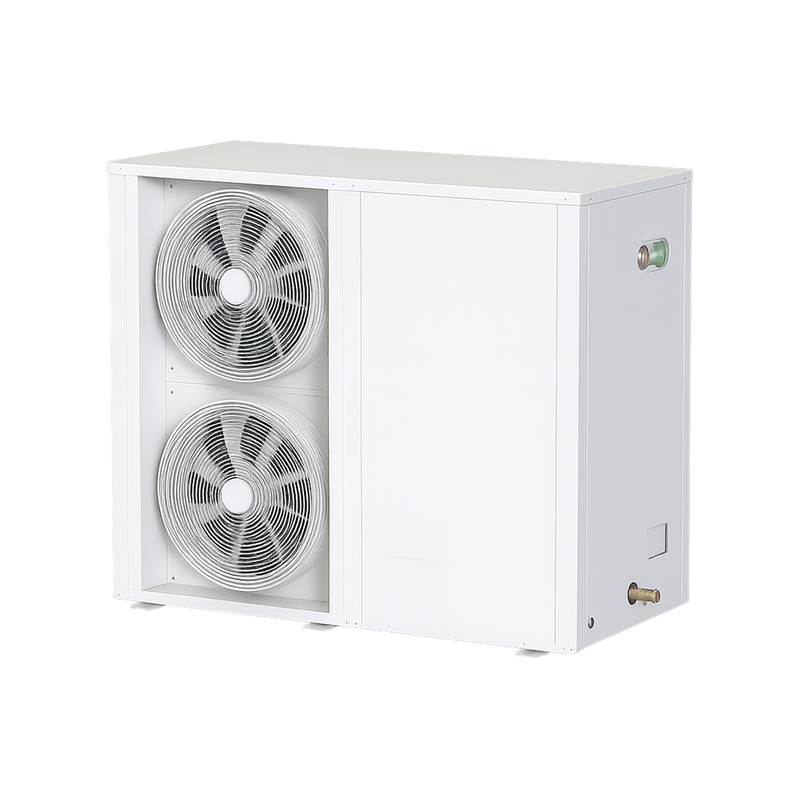

This U-Type top discharge semi-hermetic piston compressor unit is designed for medium-capacity refrigeration applications, offering stable cooling performance and durable construction. With a reinforced frame and dual fan system, it ensures effective heat dissipation and long-term operational stability. Ideal for medium-sized cold rooms and freezer setups requiring compact installation and high reliability.

Key Features:

  • Semi-Hermetic Piston Compressor with high-efficiency cooling output

  • Dual 450 mm fans with 250W motor power each, providing strong airflow and low noise

  • Evaporation temperature range: -40°C to -10°C

  • Ambient temperature compatibility: -25°C to +48°C

  • Refrigerants supported: R404A, R448A, R507A, R452A

  • Condenser surface area: 54/85/73 m² for enhanced heat exchange efficiency

  • Integrated oil separator, gas-liquid separator, and 8L liquid receiver

  • Sound level at 1m: 66 dB — quiet operation for commercial environments

  • Dimensions: 1630×770×1010 mm

  • Net weight: 225 kg

Features
Brand:
Dashang

Dimensions

Dimensions:
1630×770×1010 mm

Condensing Units

Product Type:
Semi-Hermetic Units
Unit Capacity:
5 HP
Compressor Type:
Piston
Application:
  • Freezer
  • Cold Room
Air Discharge Direction:
Top Blowing
Cooling Method:
Air-Cooled
Number of Fans:
2
