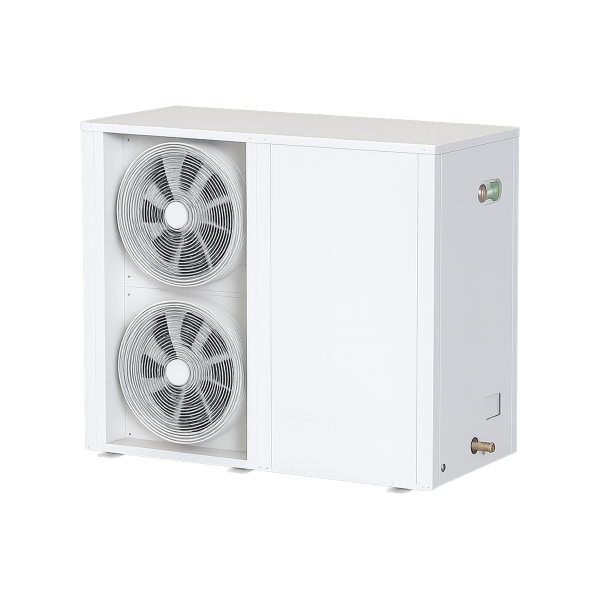

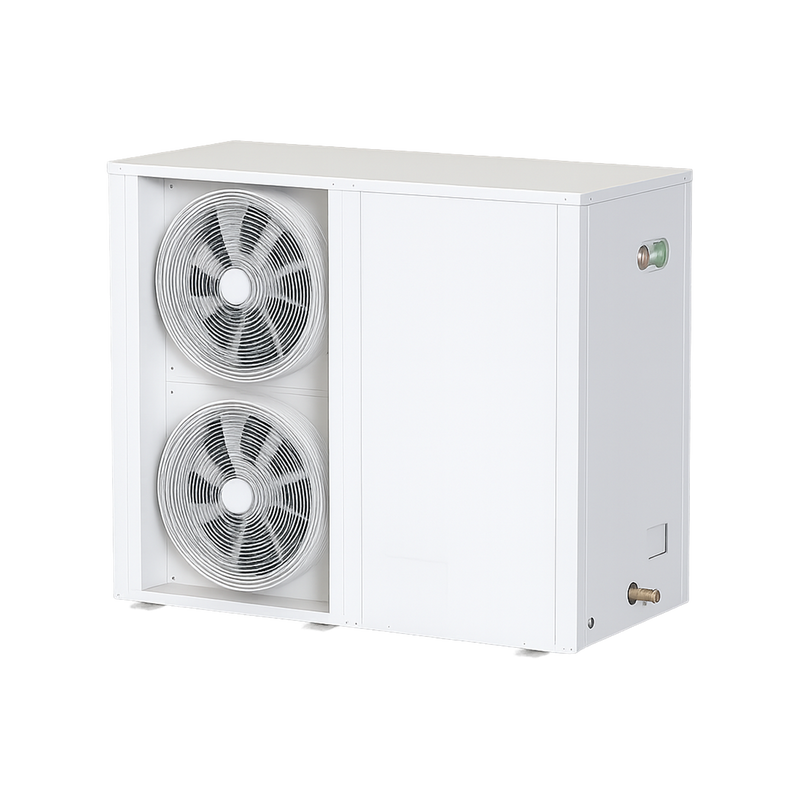

Semi-Hermetic Piston Compressor Unit (V-Type Top Discharge, 10–20HP)

Post a comment
5.00
In stock
+
  • View all variations as list
Description

This V-Type top discharge semi-hermetic piston compressor unit is a high-performance refrigeration solution designed for large-scale cold storage and industrial freezer systems. With dual high-power fans and an oversized condenser, it ensures stable operation even in high ambient temperatures. The unit includes comprehensive system protection and advanced electrical control components, making it ideal for demanding commercial and industrial environments.

Key Features:

  • Semi-Hermetic Piston Compressor for powerful and durable refrigeration performance

  • Dual 550 mm fans, each driven by a 600W motor (total 1200W), providing strong and reliable airflow

  • Evaporation temperature range: -40°C to -10°C

  • Ambient temperature compatibility: -25°C to +48°C

  • Refrigerants supported: R404A, R448A, R507A

  • Large condenser area: 136/166/197 m² for superior heat exchange capacity

  • Integrated oil separator, gas-liquid separator, and large 29L liquid receiver

  • Includes anti-vibration pads, protection net, and robust housing

  • Equipped with electrical control box (including Schneider/CHiNT contactors, overload protectors, and phase sequence relays)

  • Sound level at 1m: 74 dB

  • Dimensions: 2050×1160×1300 mm

  • Net weight: 420 kg

Features
Brand:
Dashang

Dimensions

Dimensions:
2050 × 1160 x 1300 mm

Condensing Units

Product Type:
Semi-Hermetic Units
Unit Capacity:
10 HP
Compressor Type:
Piston
Application:
  • Freezer
  • Cold Room
Air Discharge Direction:
Top Blowing
Cooling Method:
Air-Cooled
Number of Fans:
2
