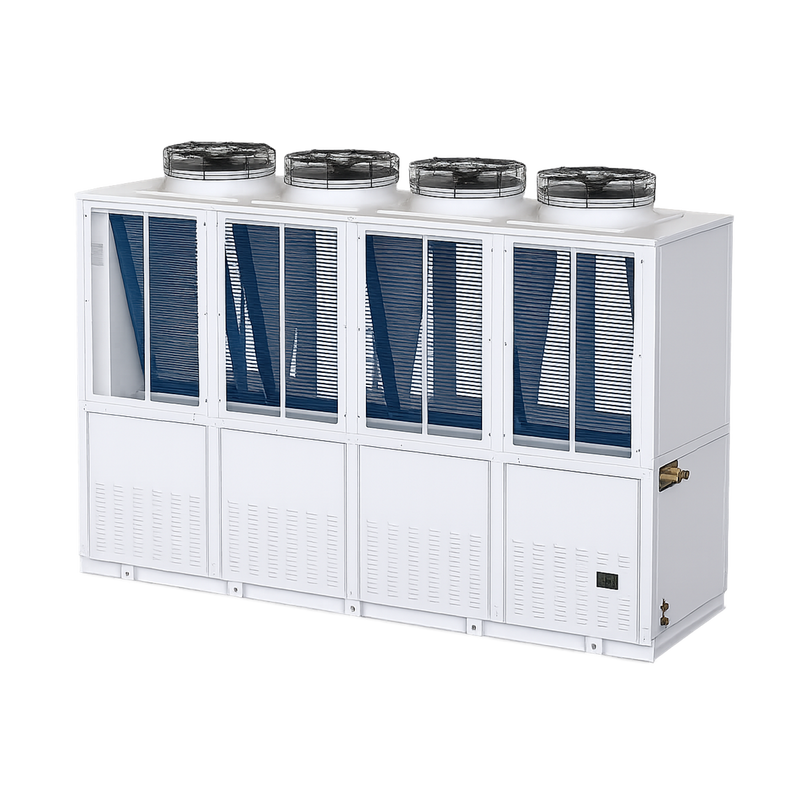

V-Type Top-Blowing Parallel Unit with Fully Enclosed Scroll Compressor (16–60HP)

The Fully Enclosed Scroll Compressor V-Type Top Discharge Unit is a high-capacity, modular refrigeration solution designed for demanding cold storage and commercial refrigeration applications. Engineered for efficiency and reliability, this system integrates scroll compressor technology into a box-type parallel unit, supporting 2-module configurations and scalable fan arrays. It offers precise cooling control and stable operation under a wide ambient temperature range.

Key Features:

• Compressor Type: Fully Enclosed Scroll Compressor

• Cooling Method: Low temperature with head fan, refrigerant injection + gas injection enhancement

• Refrigerants Supported: R404A / R448A / R507A / R452A

• Applicable Evaporation Temp: –40°C to +10°C

• Ambient Operating Temp Range: –25°C to +48°C

• Refrigeration Oil: POE

• Fan Configuration:

  • Fan Diameter: 450/500/560/700 mm

  • Number of Fans: Modular (minimum 2, depending on power)

  • Total Fan Power: 1100 W × 2 or more

  • Heat Exchange Area: >110 m² (depending on fan size)

• Structural Material: Hydrophilic aluminum foil with 0.5×2.0 mm internal threaded copper tube

• Oil Separator: All storage type oil separator with automatic return + oil storage tank

• System Components:

  • Suction, oil return, and high-efficiency gas-liquid separator

  • Liquid receiver, sight glass, oil level controller, high/low pressure gauge

• Control System:

  • Schneider LCD series display with thermal relay

  • Supports phase loss protection, overvoltage, undervoltage, RS485 communication, liquid injection, electronic expansion valve, and compressor sequencing

• Power Supply: 3PH, 380V 50Hz/60Hz or 220V 50Hz/60Hz

• Noise Level: ≤ 66 dB (at 9m)

• Unit Capacity: 16–60HP

• Approximate Dimensions:

  • Length: 1700–2500 mm

  • Width: 3500 mm

  • Height: 2400 mm (modular depending on fan quantity)
