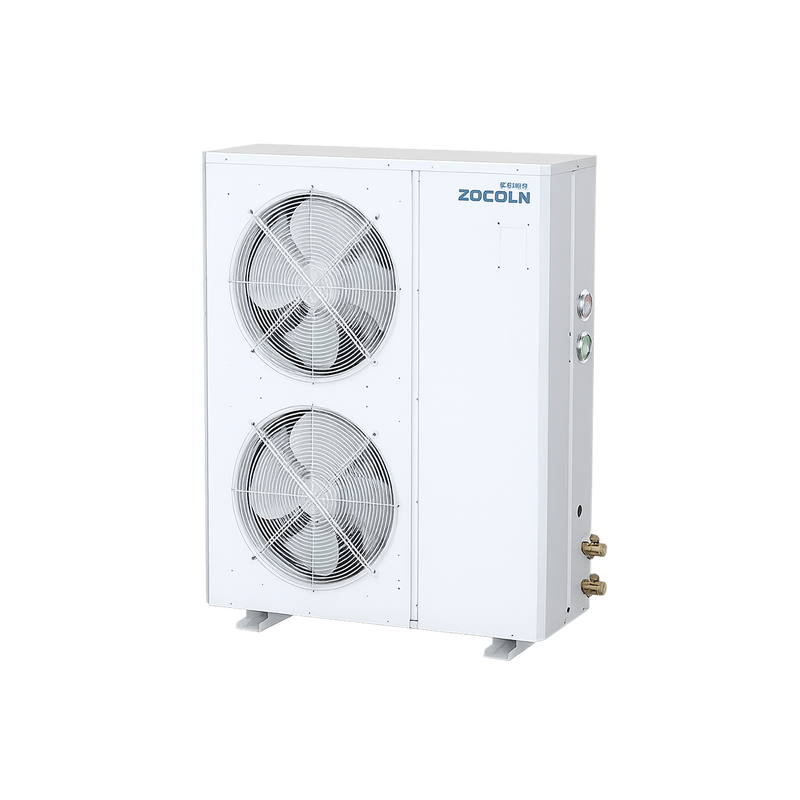

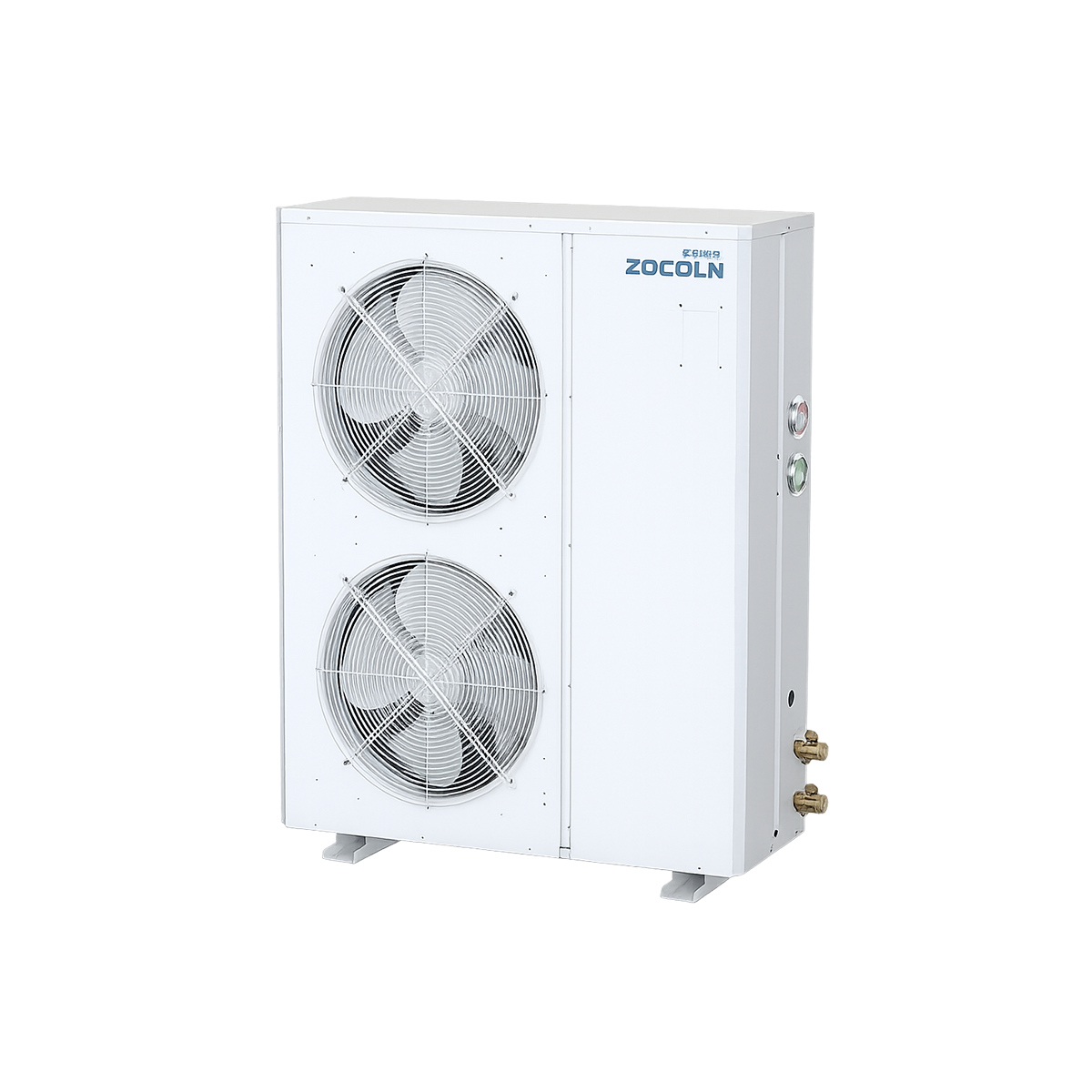

Copeland Refrigeration Fixed Frequency 5–7HP Side Blowing Box-Type Integrated Unit

Engineered for mid- to large-scale commercial refrigeration, this side-blowing condensing unit features Copeland scroll compressors, dual axial fans, and integrated smart protections. Ideal for 5–7m refrigeration cabinets in food processing, cold storage, and retail cooling chains.

Applicable Cabinet Size:
Refrigerated cabinet 5–7 meters long, 0.8 m wide, 2 m high.

Key Features:

• Available Models and Nominal Power:

  • 5HP: CAM32P01-050

  • 6HP: CAM32P01-060

  • 7HP: CAM32P01-070

• Power Supply: 3PH, 380V / 50Hz

• Refrigerant: R404A

• Evaporation Temp Range: -30°C to +10°C

• Ambient Temp Range: -15°C to +48°C

• Cooling Method: Electronic expansion valve + auxiliary liquid injection cooling

• Crankcase Heater: 35W, PTC

• Compressor Model:

  • 5HP: ZB58KQE

  • 6HP: ZB64KQE

  • 7HP: ZB48KQE

• Refrigeration Oil: POE RL32-3MAF

  • Oil Capacity:

    • 5HP: 2.07 L

    • 6HP: 1.7 L

    • 7HP: 1.77 L

• Fan System:

  • 2 × 450mm axial fans

  • Fan Power: 2 × 180W

  • Heat Exchange Area:

    • 5HP: 56㎡

    • 6HP: 64㎡

    • 7HP: 75㎡

• Condenser:

  • Copper tube (9.52*0.32mm) + Hydrophilic aluminum foil

  • L-type layout

• Piping Connection:

  • Liquid pipe: 1/2"

  • Suction pipe: 7/8"

• Electrical System:

  • Schneider LC1D series contactor

  • CHINT circuit breakers

  • RS485 communication

  • Fault code display

  • Phase loss & reversal protection

  • Exhaust temperature protection

  • Fan speed control

• Standard Components:

  • Filter drier, sight glass, liquid receiver: ✔️

  • Oil separator, gas-liquid separator: ✖️

  • High/Low pressure gauge and switch: ✔️

  • High pressure protection: Saginomiya, auto-reset, 30 bar

• Unit Weight:

  • 5HP: 112 kg

  • 6HP: 116 kg

  • 7HP: 120 kg

• Operating Noise:

  • 5HP: 57 dB

  • 6HP: 58 dB

  • 7HP: 59 dB

• Dimensions (L×W×H): 1058 × 450 × 1020 mm

• Recommended Wiring:

  • 5–6HP: 4 mm²

  • 7HP: 6 mm²
